Description

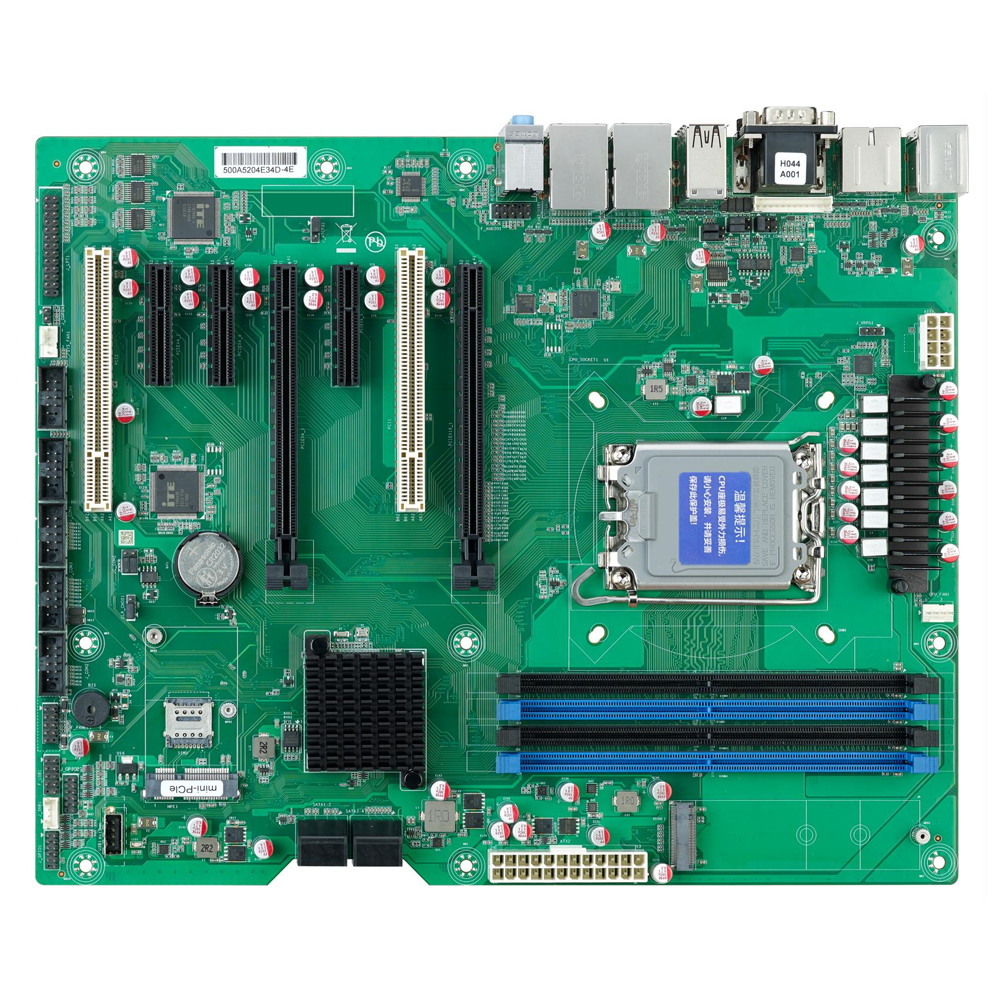

Benefits Intel chipset Q670 ATX industrial motherboard
■ Support Intel® Celeron® 12 and 13/14Gen Core i3/i5/i7/i9 CPU
■ Intel Q670 Chipset

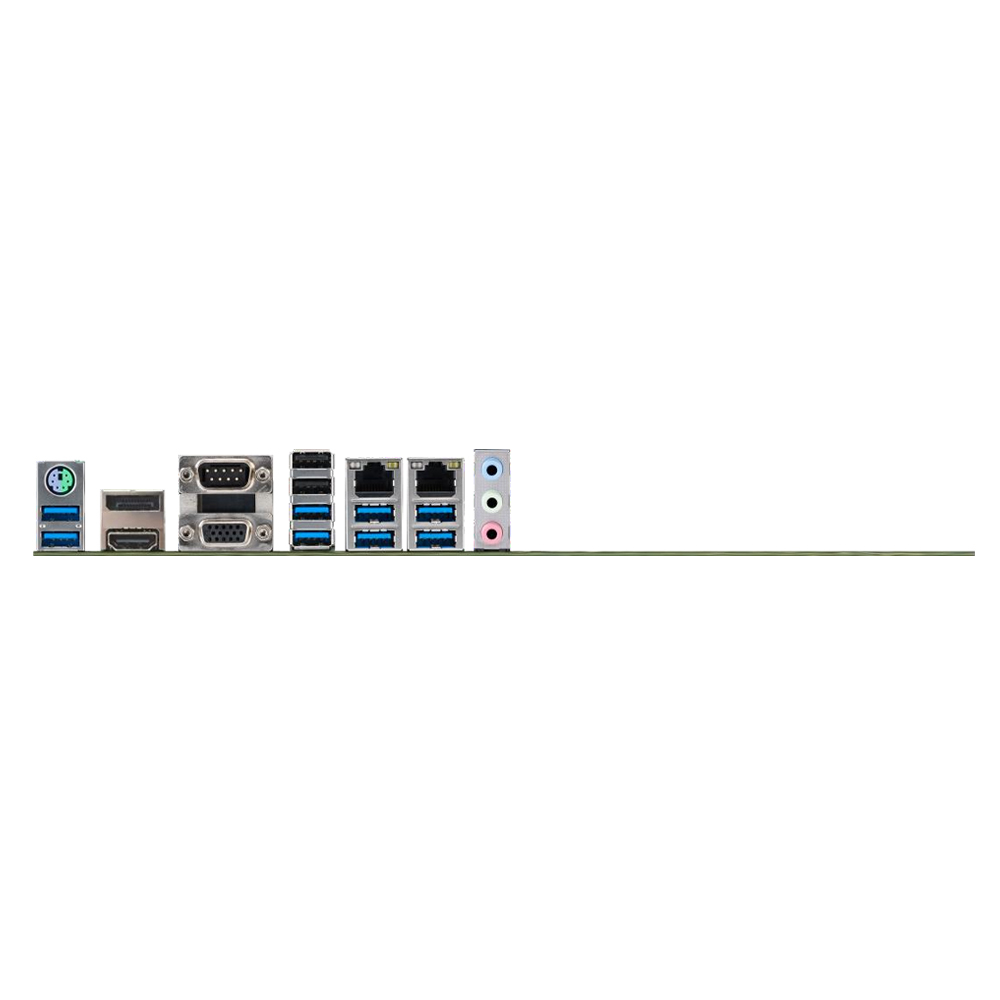

■ 2*Intel (1*I210-AT, 1*I219V) LAN
■ 6*COM(1*RS232/422/485, 1*RS232/485, 4*RS232)
■ 8*USB3.0, 5*USB2.0
■ 1*VGA, 1*HDMI, 1*DP
support triple display simultaneously
■ DDR5-4800, 4*U-DIMM, up to 128GB
■ 1*Mini-PCIe(WIFI/BT/4G)
■ 1*M.2(NVME x4)
■ 1*PCIe x16, 4*PCIe x4(optional 2*PCIe x8, 3*PCIe x4)
■ 2*PCI

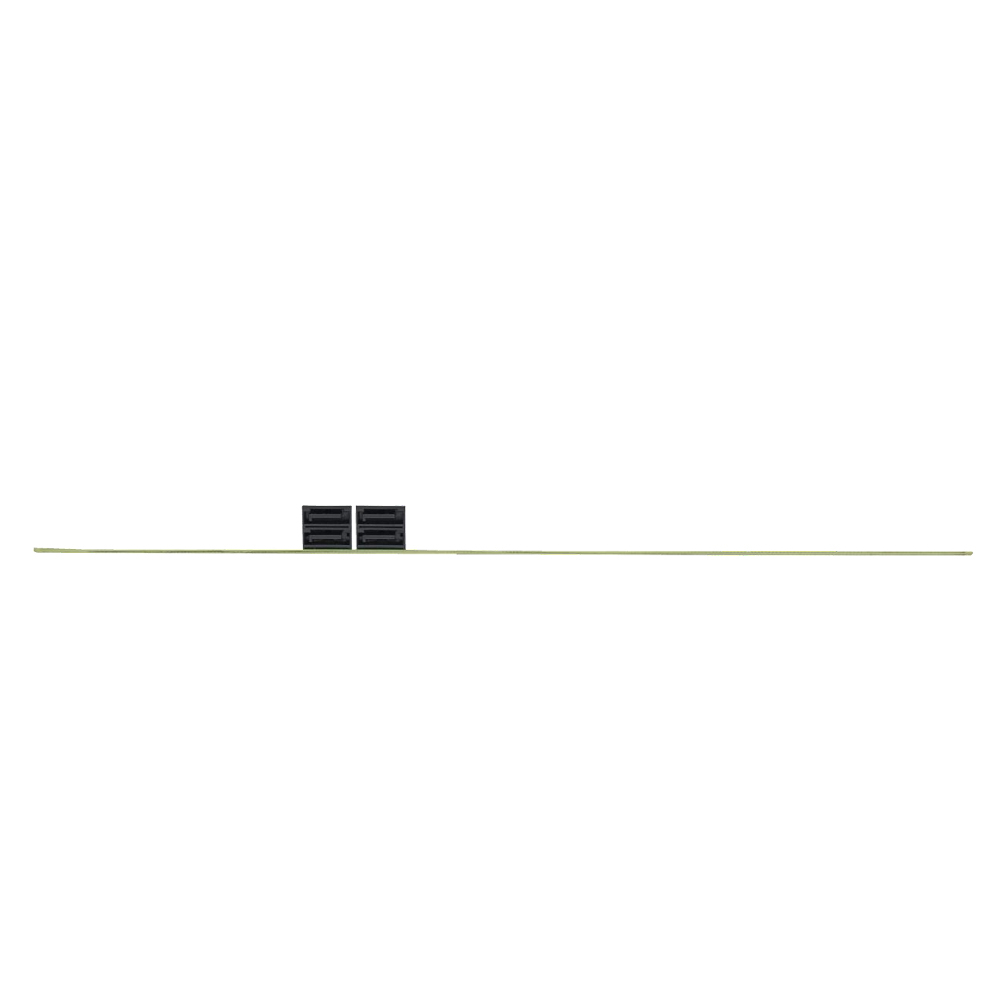

■ 4*SATA3.0
■ ATX PSU Power Input
■ ITX 305*244mm
User Manual of Intel chipset Q670 ATX industrial motherboard
