| System Hardware |
|||
| CPU | Intel N5100 CPU Quad Core 4 Thread 2.8GHz | Earpiece | Waterproof earpiece |
| Memory | 8GB | Button | Power button, Volume +/-. 2*Customize functional P and F keys |
| Storage | 128GB | ||
| Camera | 5MP front camera with fixed focus 8MP rear camera with auto focus |
||
| Speaker | Dual speakers, 1.2W8Ω | LED Indicator | Charging indicator |
| MIC | Waterproof MIC | Sensor | G-sensor,Gyroscope,E-compass,Distance sensor, Motor, Light sensor |
| Display | |||
| LCD Type | 8"TFT-LCD | Luminance | 700 cd/m2 |
| Max.Resoltuion | 1920*1200 | Touchscreen | 5-Points projected capacitive touchscreen, up to 10-points Optional AG+A |
| Cover Glass | Corning Gorilla Glass lll,hardness 7H, light transmittance 85% | ||
| OS | |||
| OS | Windows 10/11 pro/home/IOT or Linux Ubuntu 20.04 LTS OS optional | ||
| l/O Interface | |||
| POGO PIN | 1*POGO PIN(USB+Charging) | DC Jack | 1*12V 4A DC Jack |
| USB | 1*USB Type C(USB OTG+Charging) 1*USB 3.0,TYPE A |
||
| Video | 1*mini HD | SlM Card Slot | 1*Micro SlM Card Slot |
| Audio | 3.5mm Headphone Jack | TF Card Slot | 1*TF Card Slot, up to 256GB |
| LAN | 1*RJ45，100/1000Mbps | ||
| Communication | |||
WNAN |
4G LTE/5G optional LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM:B3/B8 |
WIFI | 802.11a/b/g/n/ac, 2.4G+5.8G Dualband WIFI |
| Bluetooth | Bluetooth 4.0 (BLE) | ||
| GNSS | U-Blox GPS+BeiDou+GLONASS/Galileo | ||
| Extended Functions | |||
| NFC/RFID | Optional | ||
| Fingerprint | Optional fingerprint recognition | Barcode Scanner | Optional 1D/2D barcode scanner. 2 choose 1 |
| Power | |||
| Power Input |
12V 4A DC power adapter |
Battery | 5000mAh.7.6v Li-lon battery |
| Battery Life | 7 hours (Play 1080P video under LCD 50% backlight） | ||
| Environment |
|||
| Drop | 1.2m free fall to the wooden floor | Operating Temp. | -10℃~50℃ |
| IP Rating | IP68 | Storage Temp. | -30℃~70℃ |
| Certificate | |||
| Certificate | CE、ROHS、UN38.3、MSDS | ||

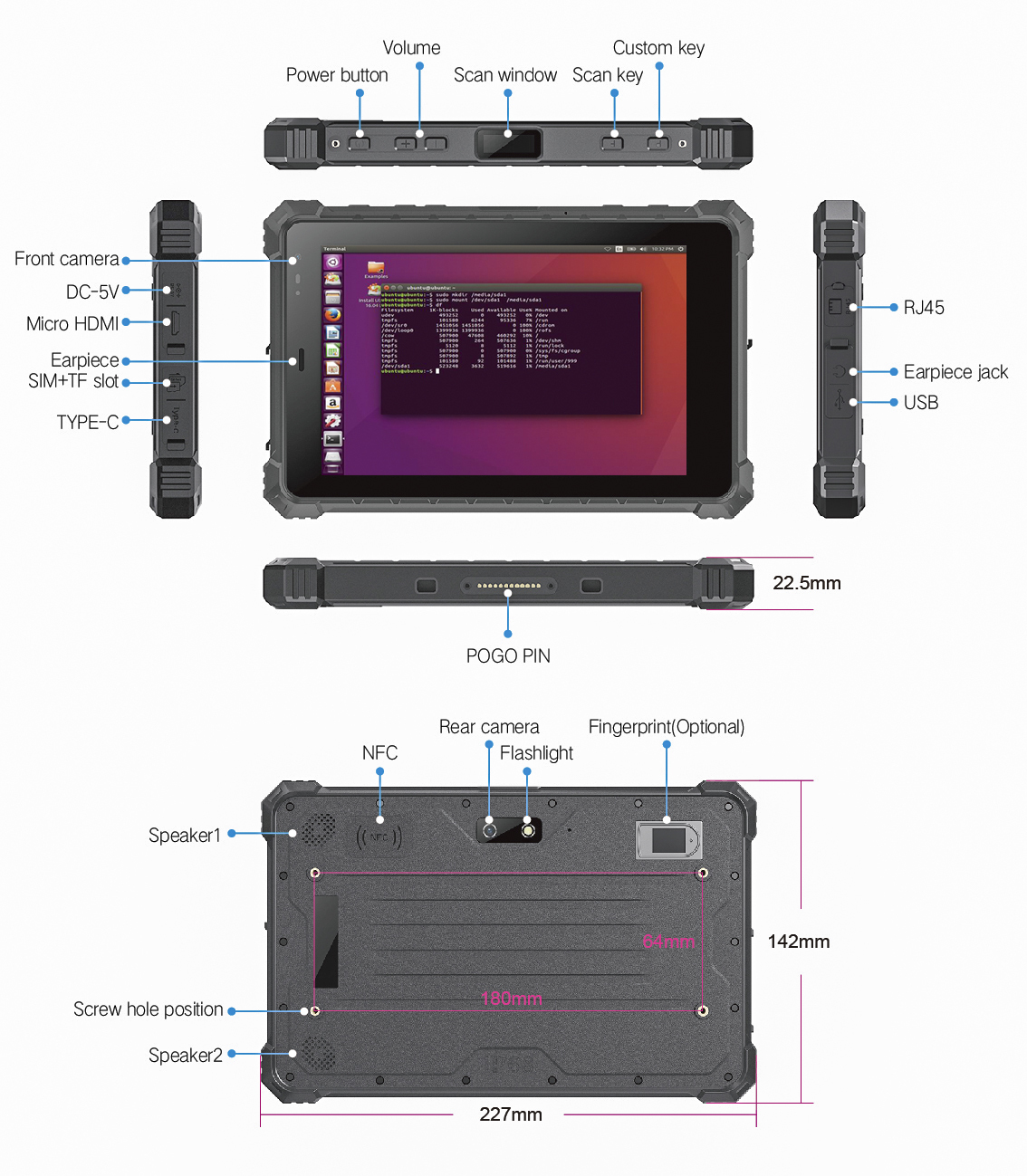

| Mechanical |
|||
| Dimension (WxHxD) |
227*142.4*22.5mm | ||
| Weight | 0.83kg | Color | Black |
| Accessory | |||
| Accessory | Hand strap,12V/4A power adapte | ||
| Optional Accessory | Docking, Vehicle bracket, Vehicle charger,Passive touch pen, Type-C data cable,Vehicle charging bracke | ||
