Description

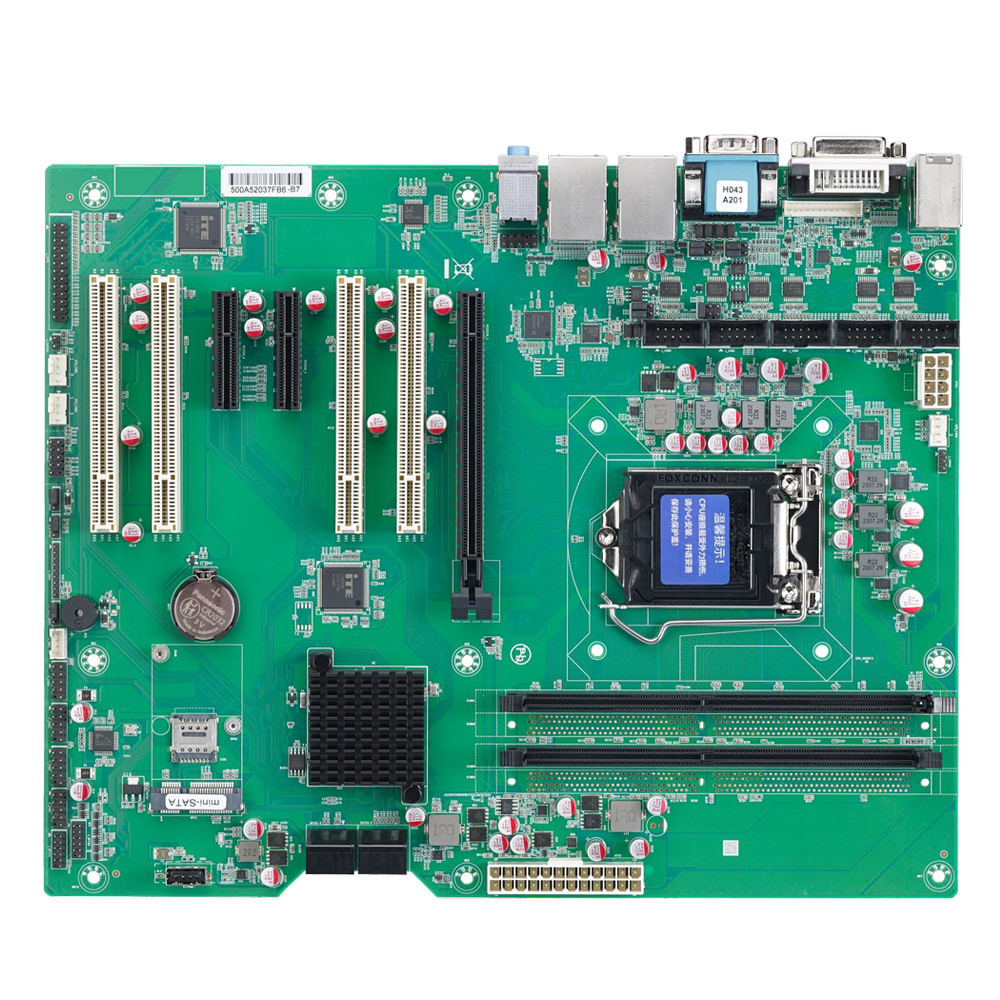

Benefits Intel chipset H110 ATX industrial motherboard
■ Support Intel® 6/7/8/9th Gen Core i3/i5/i7, Pentium, Celeron CPU
■ Intel H110 Chipset
■ 2*Intel GbE(1*I210-AT, 1*I219V) LAN
■ 6*COM(1*RS232/422/485, 1*RS232/485, 4*RS232)
■ 4*USB3.0, 11*USB2.0
■ 1*VGA, 1*HDMI, 1*DVI-D, support dual display simultaneously
■ DDR4-2133/2400/2600, 2*U-DIMM, up to 64GB
■ 1*Mini-PCIe(mSATA/4G/BT)
■ 1*PCIe x16(support x16), 2*PCIe x4(support x2)
■ 4*PCI
■ ATX PSU Power Input
■ ITX 305*244mm
User Manual of Intel chipset H110 ATX industrial motherboard
