| System Hardware |
|||
| Chipset | Intel Q670, support 12th/13th Core i3/i5/i7 Pentium/Celeron LGA1700 CPU | Watchdog | Programmable timeout interupt or system reset, 1 to 255 seconds |
| Chipset | Intel®Q670 | Power Supply | 18-36V DC IN |
| Memory | 1*DDR4-3200MT/s SO-DIMM,Max 64GB | Storage | 1*M.2 2280 M-Key(support PCIe X4/SATA3.0) ; 2*SATA3.0 2.5 |
| OS | |||
| OS | Win10/Win11/Unix/Linux | ||

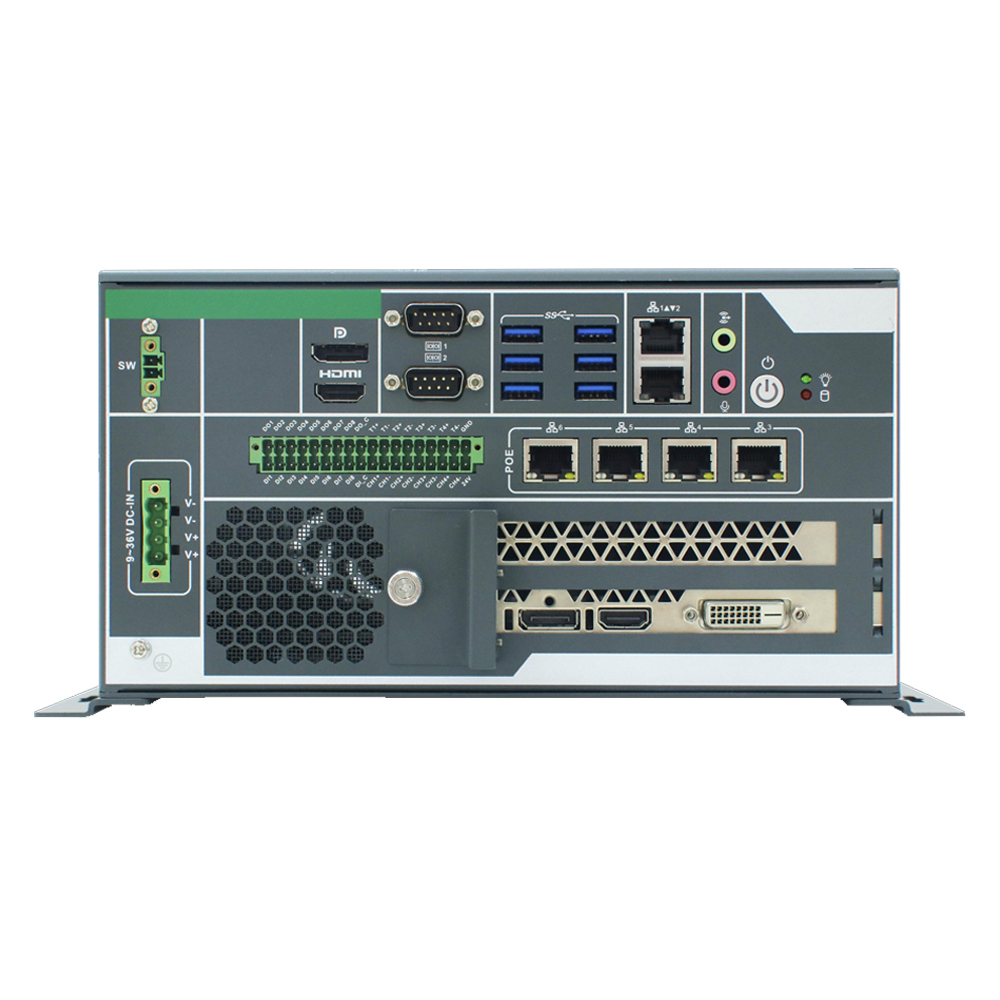

| l/O Ports | |||
| USB | 6*USB3.0 | LAN | 6*RJ45 GbE ethernets; Lan 1 is Intel I225-V; Lan 2 to 6 is Intel I210AT ; Lan 3 to 6 support POE 802.3AF |
| COM | 2*RS232/422/485 | GPIO | 1*16bits GPIO (8DI+8DO) |
| Video | 1*DP1.4a+1*HDMI 2.0b, DP: 7680x4320 @ 60Hz, HD: 4096x2160@60Hz |
Power Supply | 18-36V DC IN; |
| Expand | 1*M.2 3042/52 B-Key for 4G/5G; 1*M.2 2230 E-Key for wifi/BT; 2 xPCIE X16 |
Audio | 1*MIC-IN 3.5mm; 1*LINE-OUT 3.5mm; |
| Power | |||
| Power | DC IN 18~36V, 4-pin lockable phoenix connector | Power Consumption | TDP 65W |
| Mechanical |
|||
| Dimension (WxHxD |
272mm×240mm×128mm | Material | Aluminum rectangular profile heat dissipation shell, |
| Weight | 3.2kg (two expansions) | Color | Grey |
